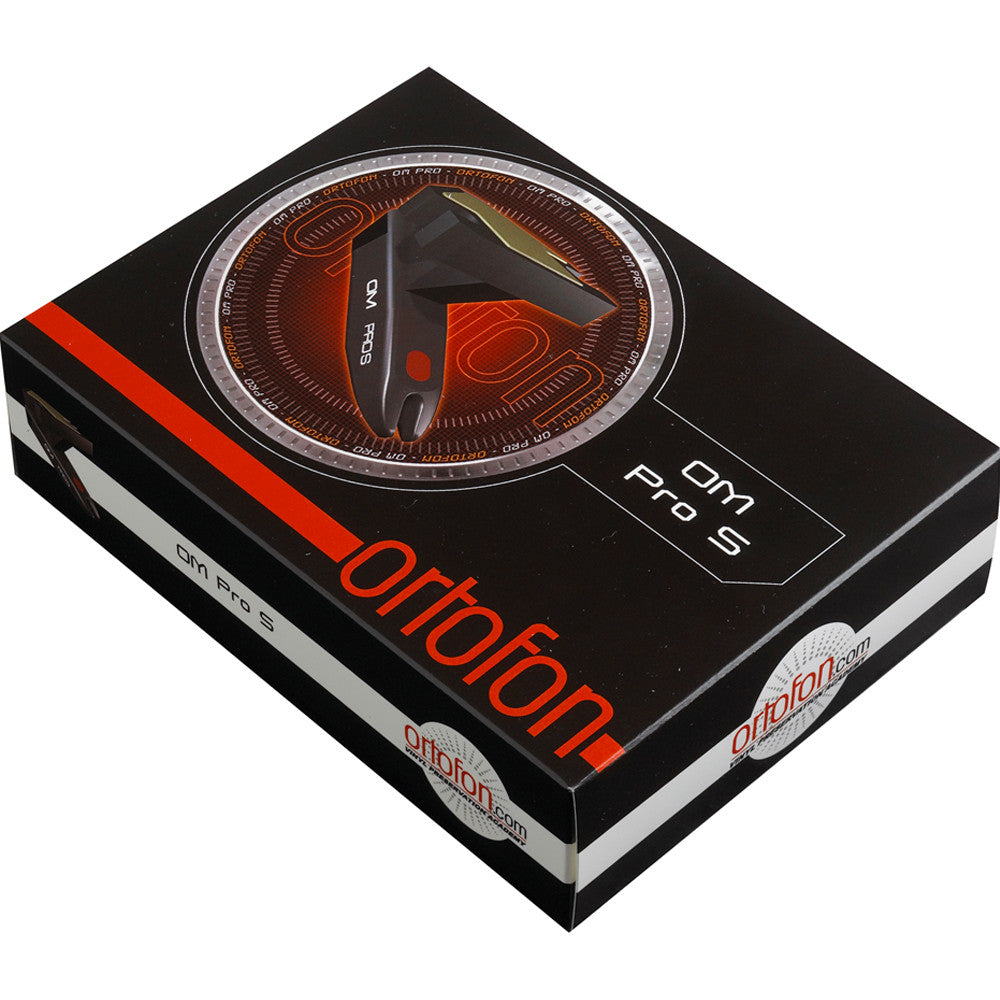

Ortofon - OM Pro S

NEW ORTOFON CONCORD DJ.

Output voltage at 1000 Hz, 5cm/sec:  5 mV
Channel balance at 1 kHz:  2 dB
Channel separation at 1 kHz:  20 dB
Channel separation at 15 kHz:  15 dB
Frequency range at - 3dB:  20-20.000 Hz
Frequency response:  20-18.000 Hz + 2dB
Tracking ability at 315Hz at recommended tracking force:  70 µm
Compliance, dynamic, lateral:  7 µm/mN
Stylus type:  Spherical
Stylus tip radius:  R 26µm
Tracking force range:  3,0-5,0 g (30-50 mN)
Tracking force, recommended:  4,0 g (40 mN)
Tracking angle:  20°
Internal impedance, DC resistance:  750 Ohm
Internal inductance:  450 mH
Recommended load resistance:  47 kOhm
Recommended load capacitance:  200-600 pF
Cartridge weight:  5 g
Replacement stylus unit:  Pro S
